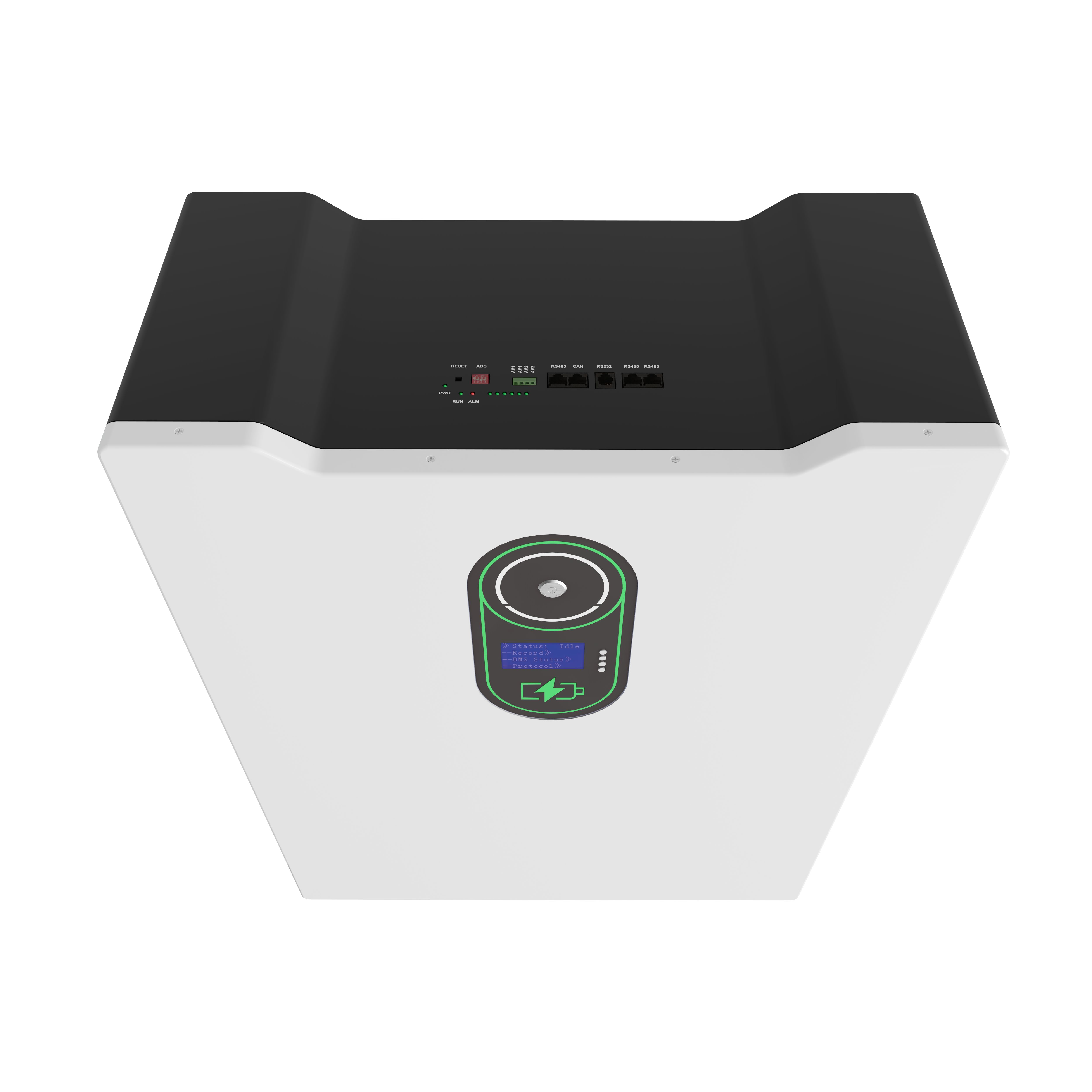

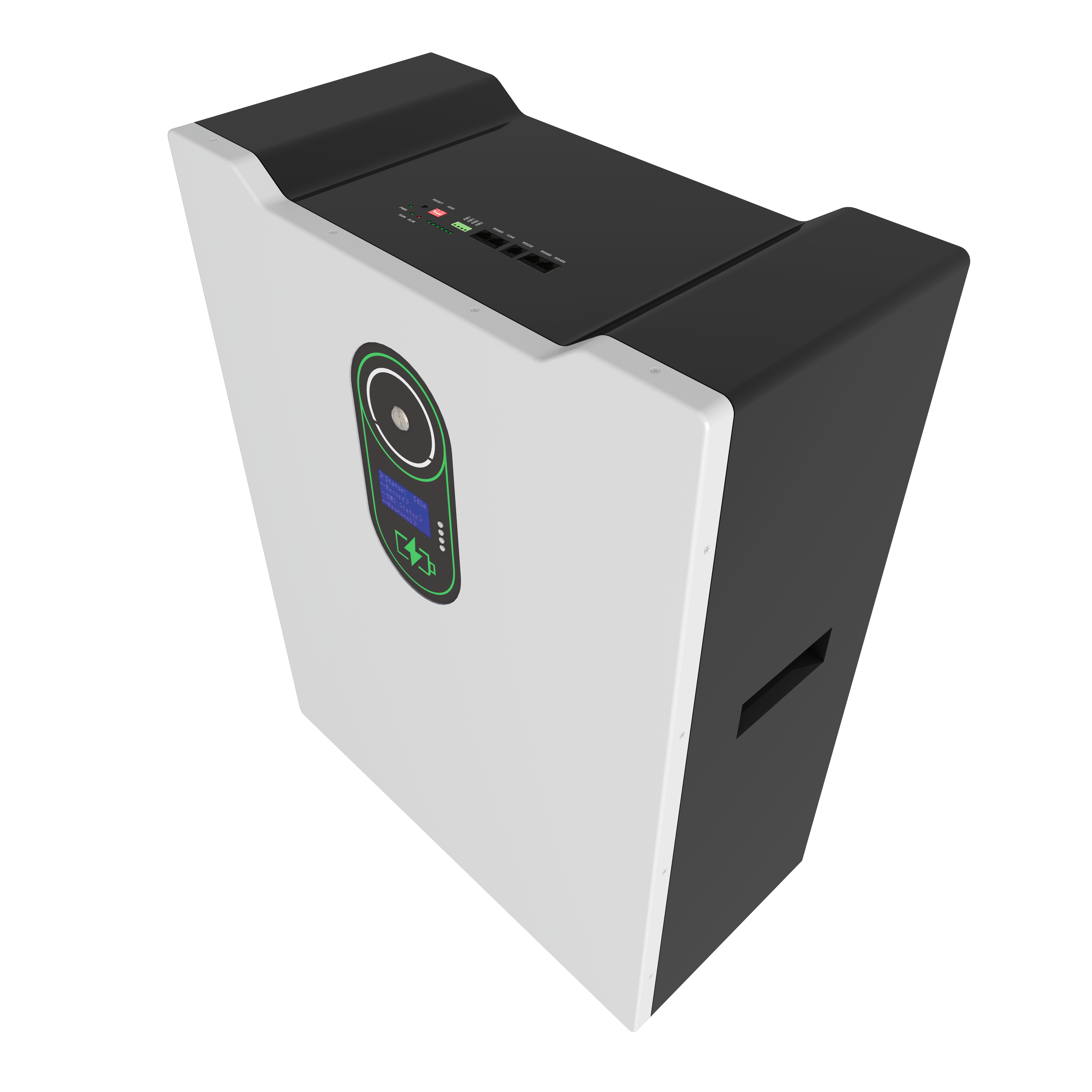

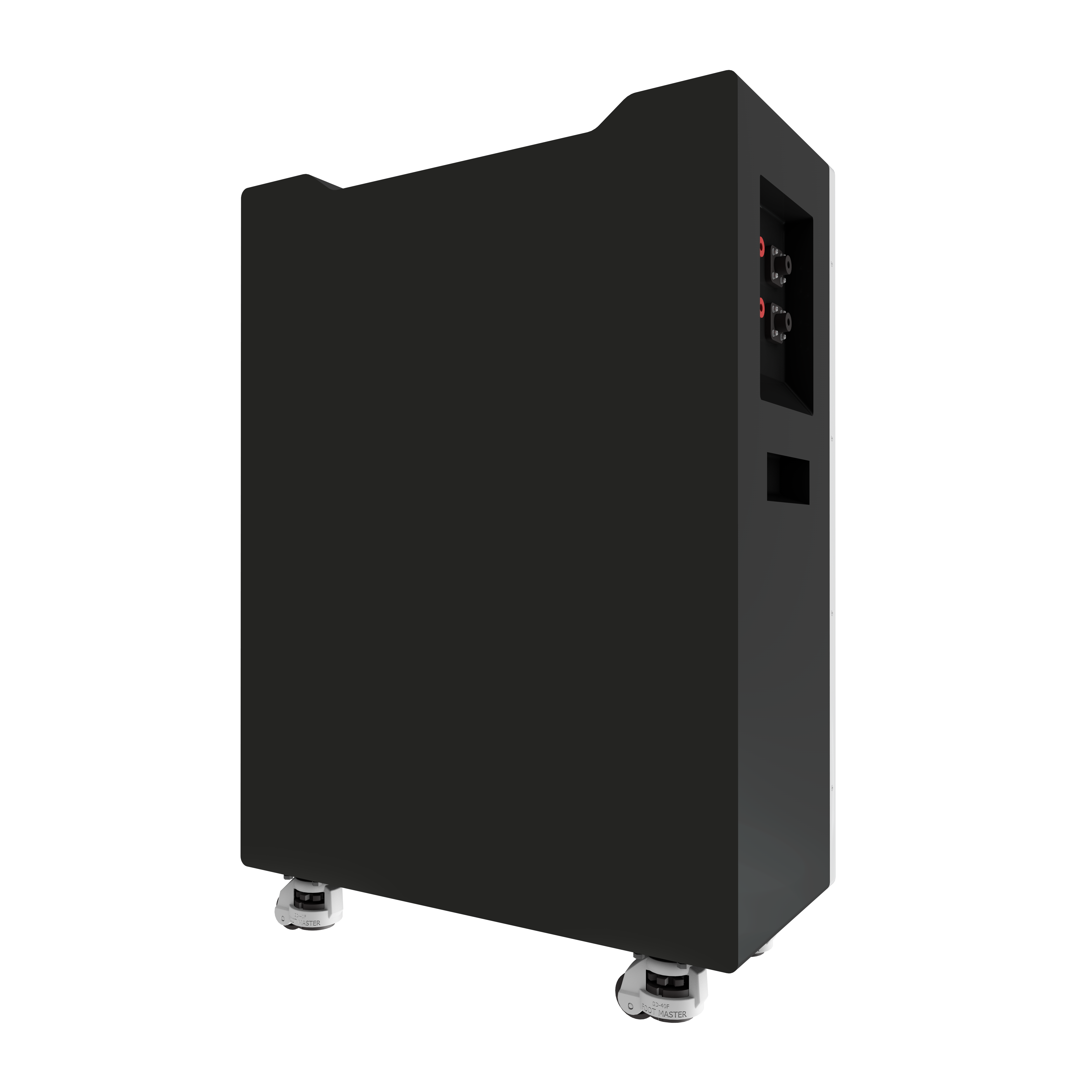

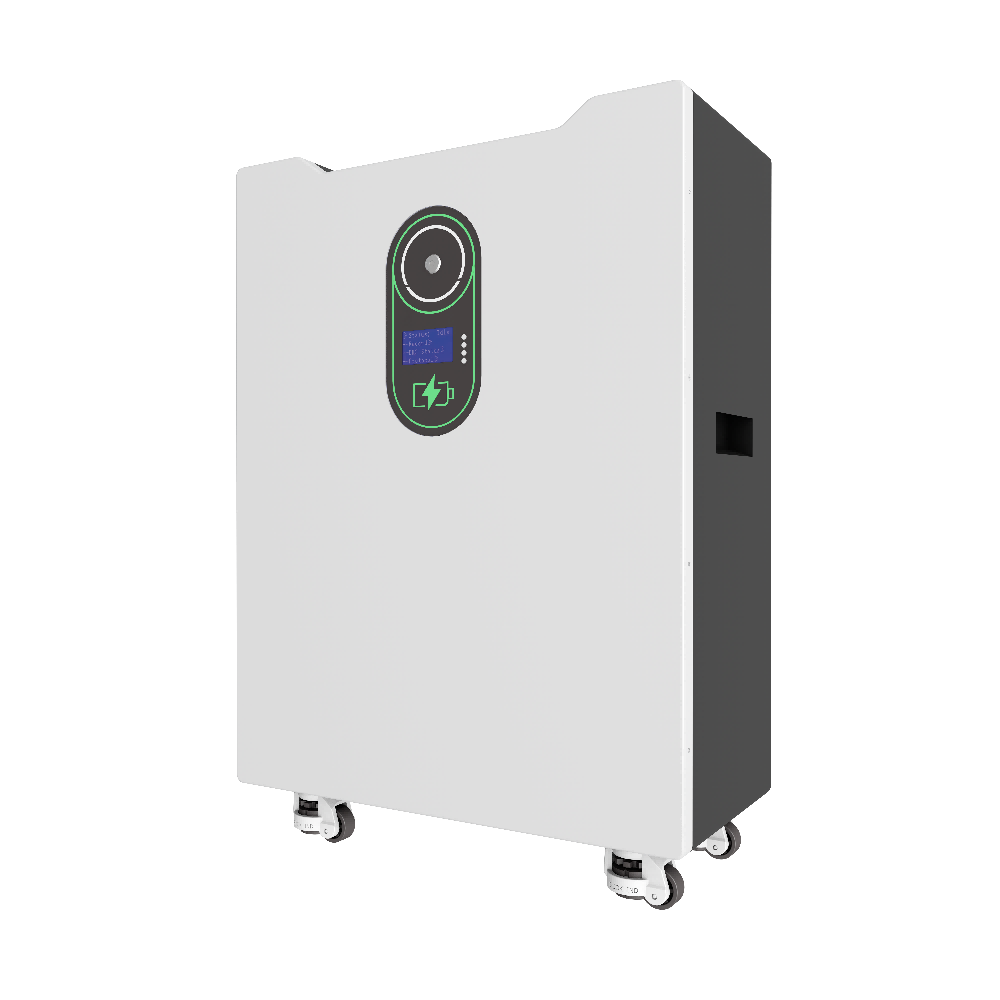

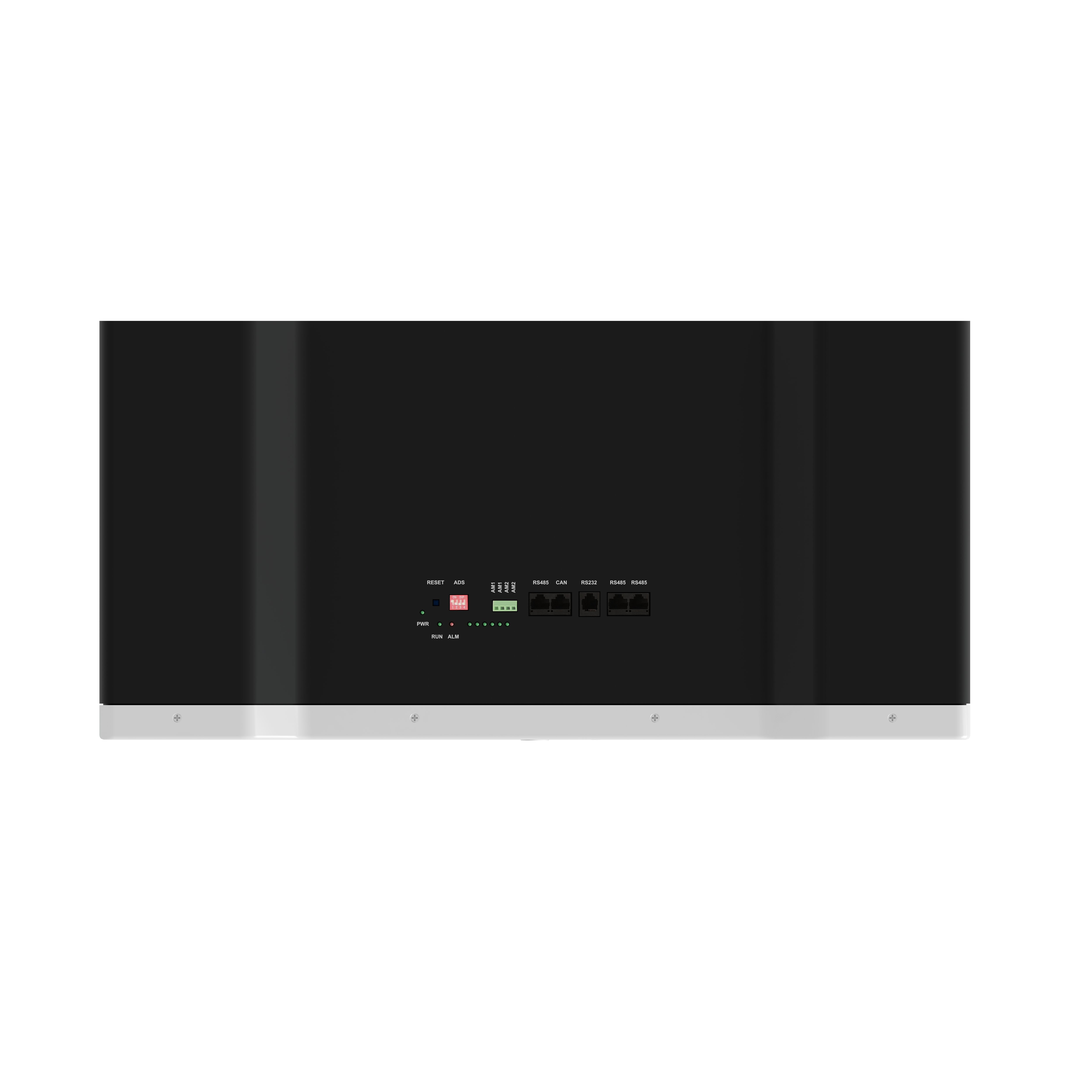

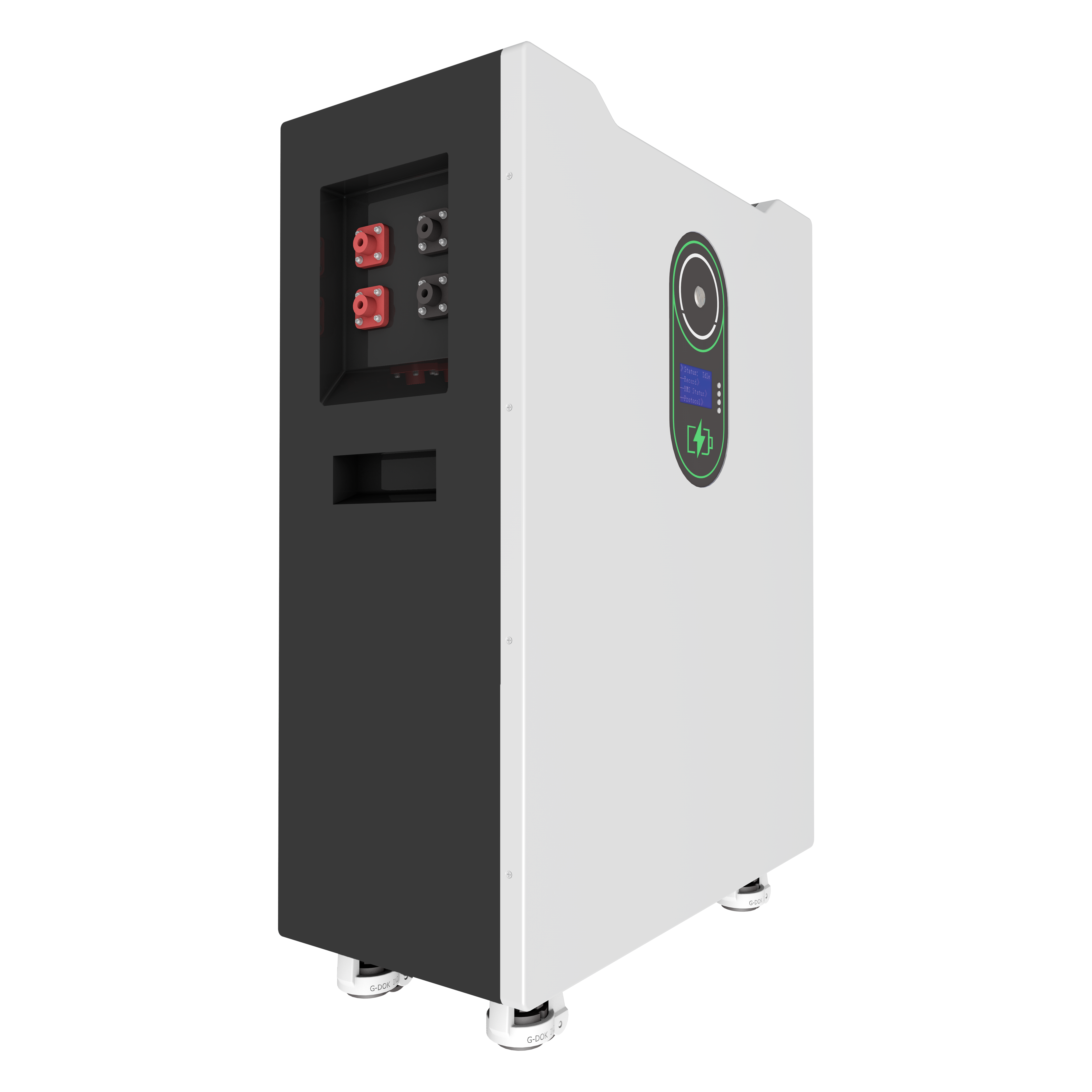

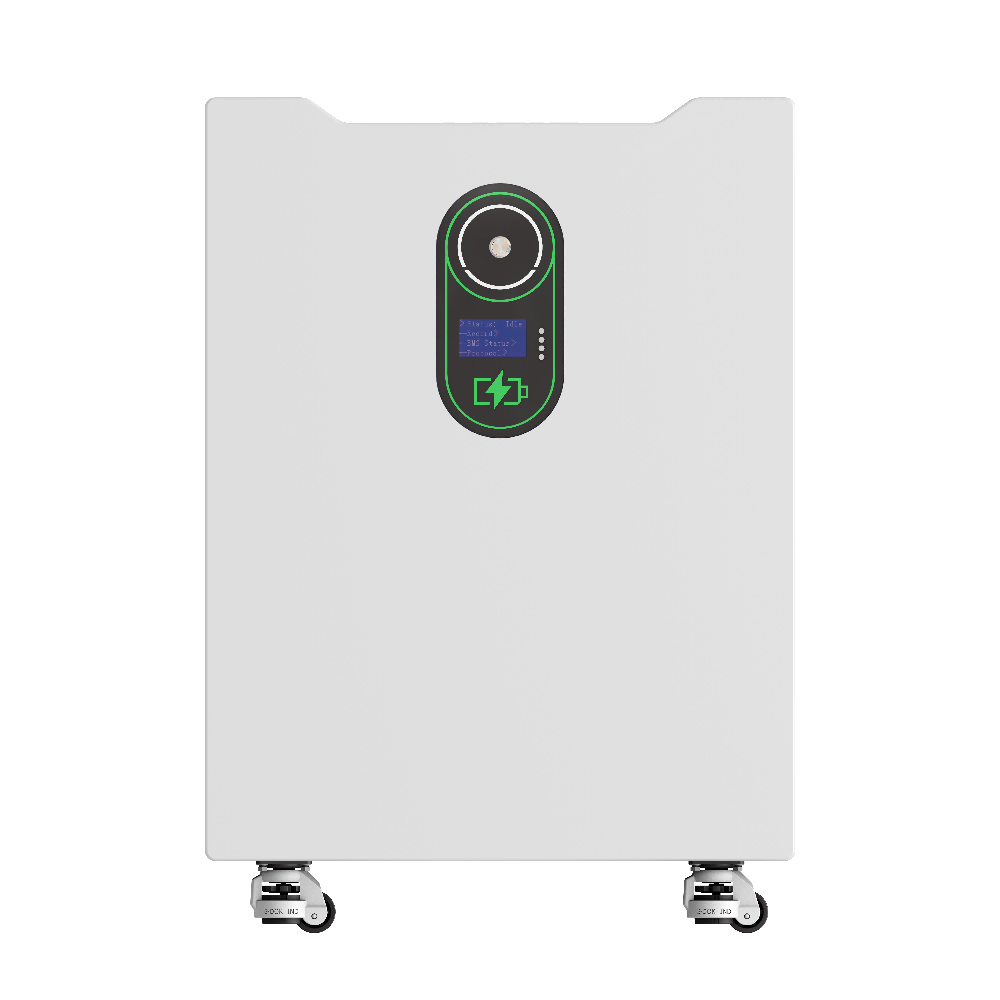

Floor-Mounted Energy Storage Battery
01 BATTERY FEATURES
Original Grade A lithium iron phosphate battery cell has high safety and reliability
The charging and discharging efficiency is high, and the number of cycles is more than 6000 times Compatible with most inverters on the market
Supporting RS485 and CAN communication
Modular design, can be expanded at any time to increase the energy of the system
Supporting up to 15 batteries in parallel
ON/OFF switch control output
The LCD display monitors the operating status in real time
Product Description |
|
|
Product Model |
M16S280BL-F |
|
Cells In Series |
16S |
|
Rated Energy (KWh) |
14.3 |
|
Rated Voltage (V) |
51.2 |
|
Charging Voltage (V) |
58.4 |
|
Discharge Cut-off Voltage (V) |
42 |
|
Standard Charge Current (A) |
50 |
|
Maximum Charging Current (A) |
100 |
|
Maximum Discharge Current (A) |
100 |
Features |
|
|
Cycle Life |
≥ 6000 times @ 80% DOD, 25 °C |
|
Methods Of Communication |
RS232/RS485/CAN |
|
Charging Temperature |
0~60℃ |
|
Discharge Temperature |
-10~65℃ |
|
How It Is Displayed |
LCD display |
|
IP Protection |
IP 21 |
Conventional |
|
|
Product Dimensions (L×W×Hmm) |
580×280×800 |
|
Net Weight (Kg) |
124.2 |
|
Packing Dimensions (L×W×Hmm) |
700×495×900 |
|
Gross Weight (Kg) |
142.7 |
