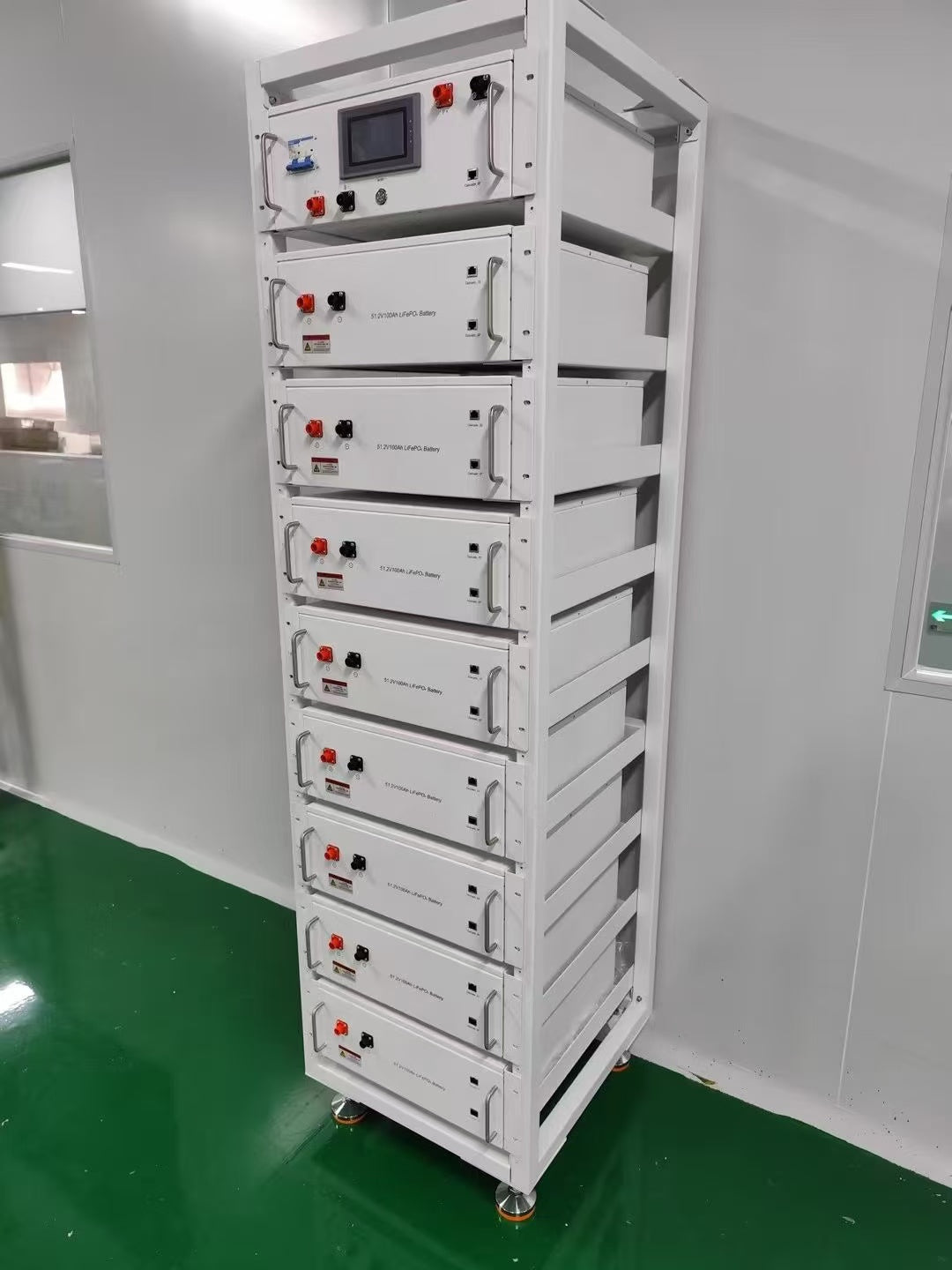

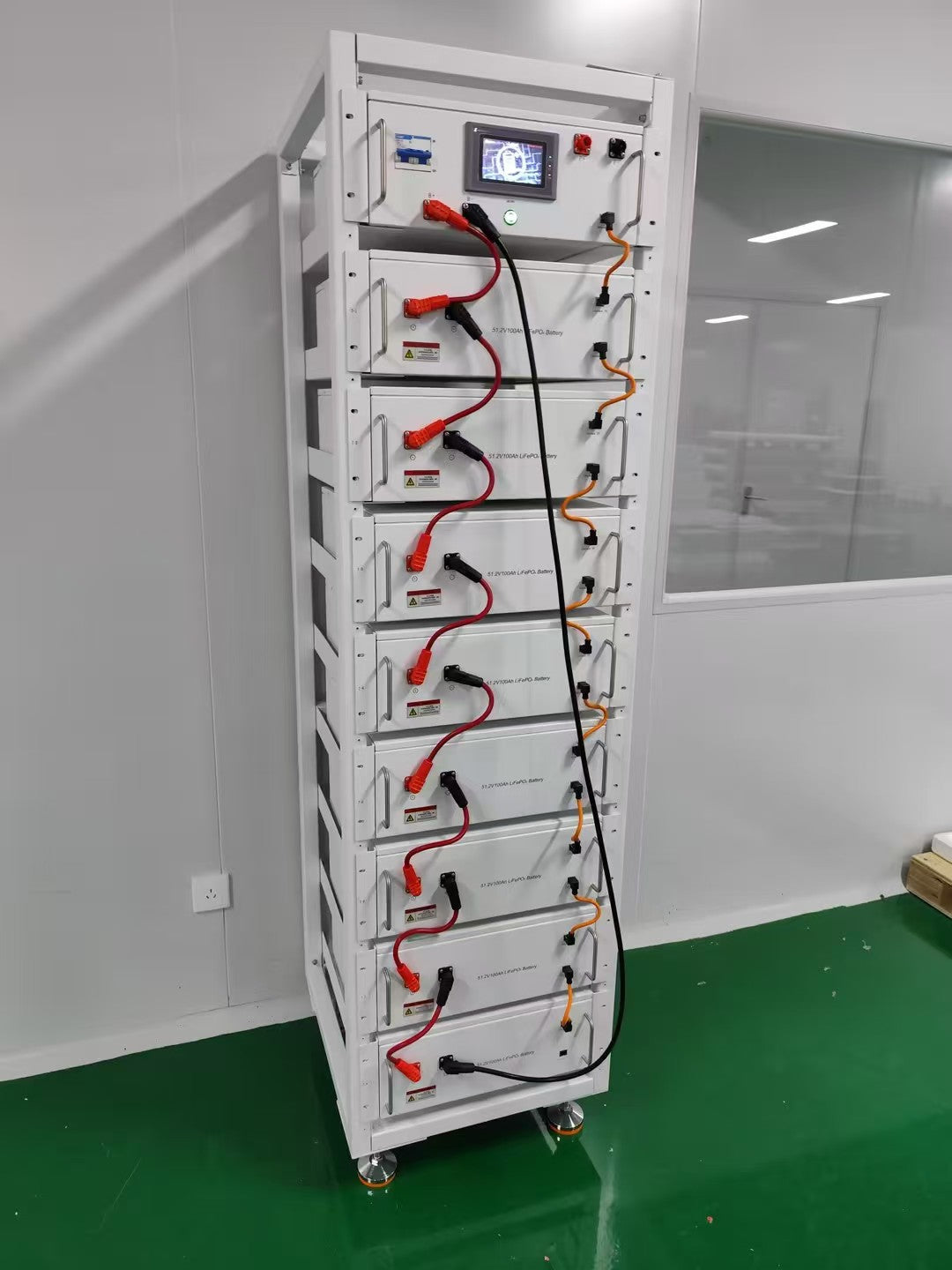

HIGH VOLTAGE LiFePO4 BATTERY
01 BATTERY FEATURES
Original A-grade lithium iron phosphate battery cell has high safety and reliability Intelligent integrated BMS, all-round protection strategy and fault detection

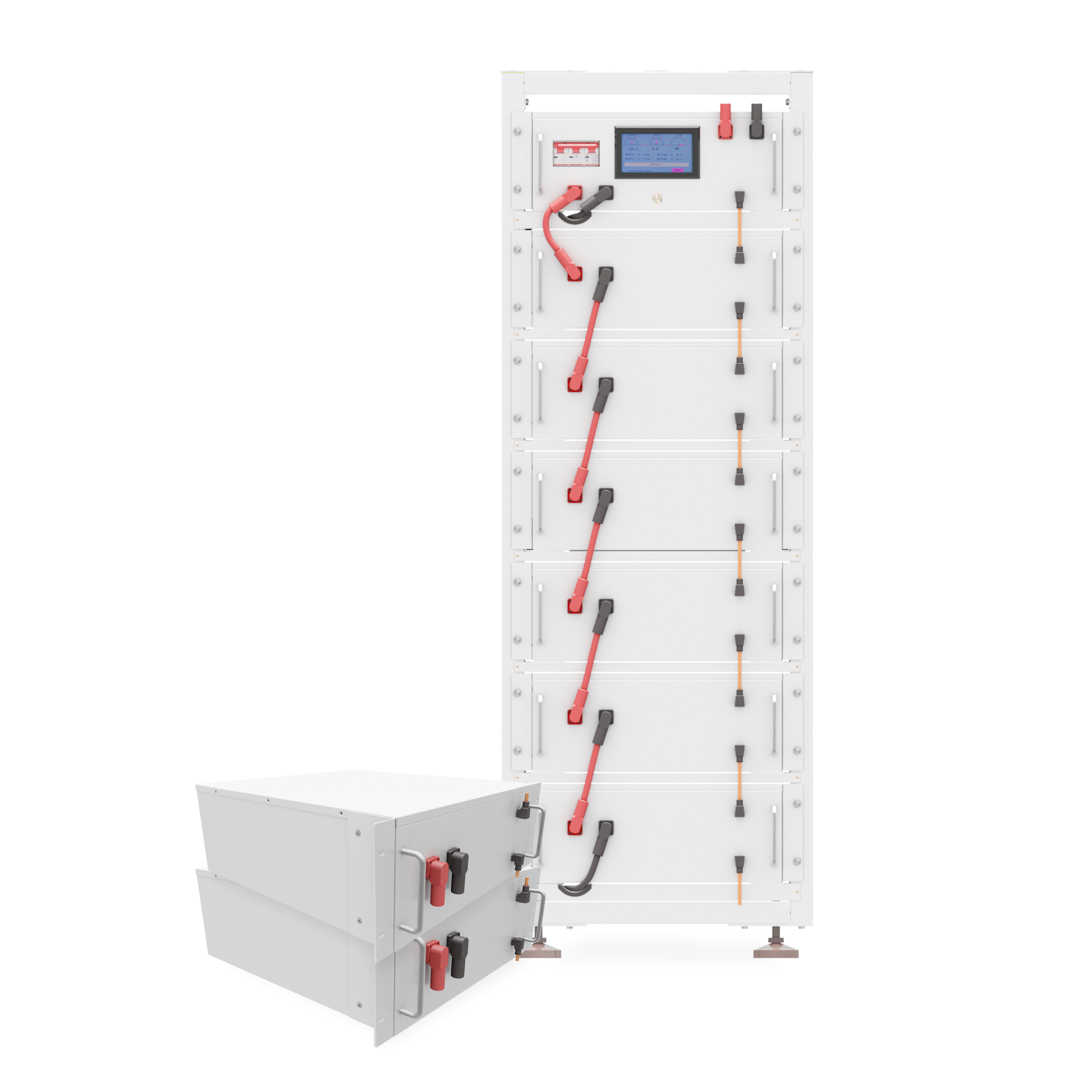

Modular design, parallel expansion, flexible choice of voltage and capacity
Large capacity, high charging and discharging efficiency, more than 6000 cycle life

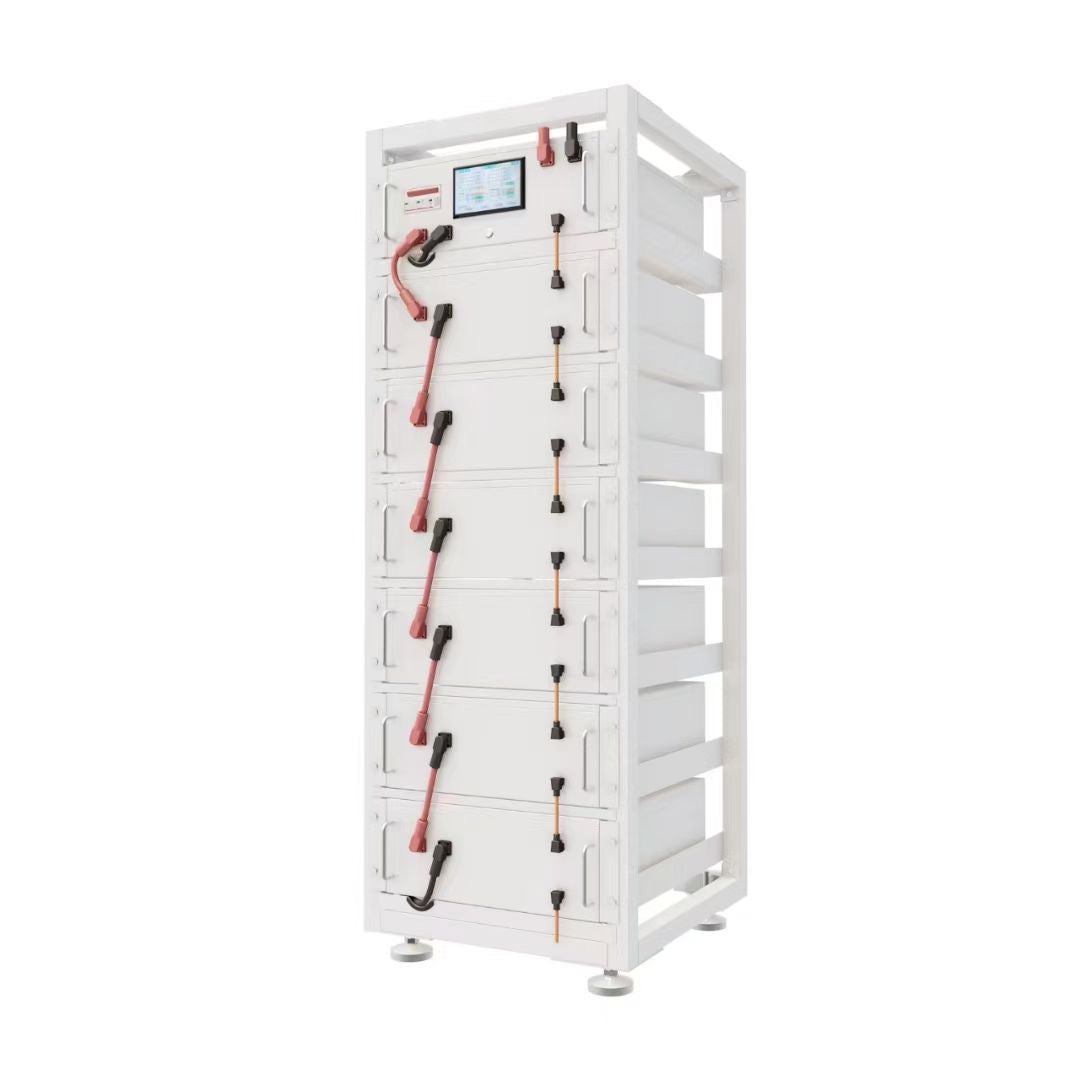

Built-in fire extinguishing device, automatically deal with ultra-early warning thermal runaway status Bottom tripod design, standard cabinet for easy installation and easy maintenance
ON/OFF switch control output
LCD display, dynamic display of system operating status data
Product Description
|
Product Type |
HVM64S100BL-U |
HVM96S100BL-U |
HVM128S100BL-U |
HVM160S100BL-U |
|
Number of Modules |
4 |
6 |
8 |
10 |
|
Battery Capacity |
100Ah |
100Ah |
100Ah |
100Ah |
|
Battery Energy |
20.48KWh |
30.72KWh |
40.96KWh |
51.2KWh |
|
Size(L×W×H) mm |
548×584×1500 |
548×584×1500 |
548×584×1950 |
548×584×2300 |
|
Weight |
235Kg |
384Kg |
425Kg |
510Kg |
|
Standard Charge Current |
20A |
20A |
20A |
20A |
|
Standard Discharge Current |
20A |
20A |
20A |
20A |
Features
|
Battery Type |
LFP |
|||
|
Cycle Life |
≥ 6000 times @ 80% DOD, 25 °C |
|||
|
Nominal Voltage |
204.8V |
307.2V |
409.6V |
512V |
|
Operating Voltage Range |
160-584V |
|||
|
IP Protection |
IP 21 |
|||
|
lnstallation |
Cabinet Holding |
|||
|
Charging Temperature |
0~60℃ |
|||
|
Discharge Temperature |
-10~60℃ |
|||
Conventional
|
BMS Monitoring Parameters |
SOC, System voltage,current, cell voltage, cell temperature, PCBA temperature measurement |
|
Communication Port |
RS485/CAN |
|
Waranty |
5 or 10 years(optional) |
