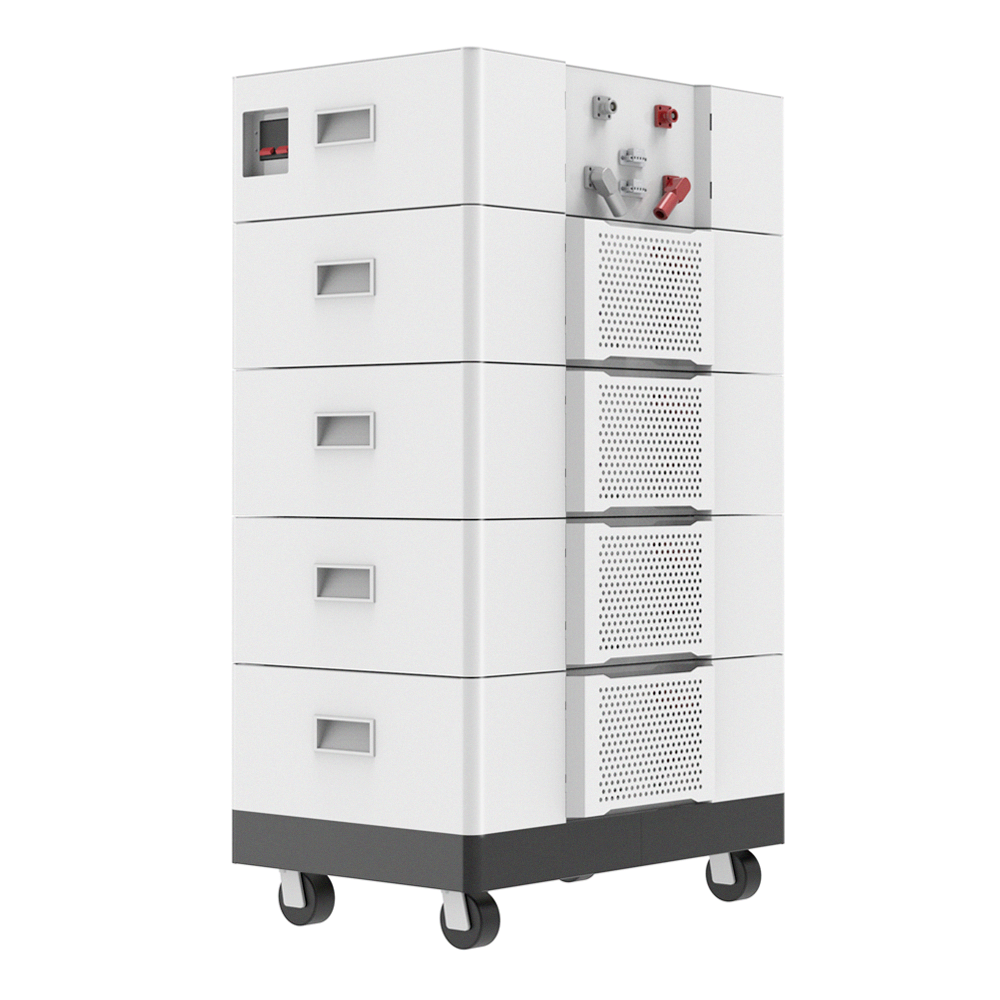

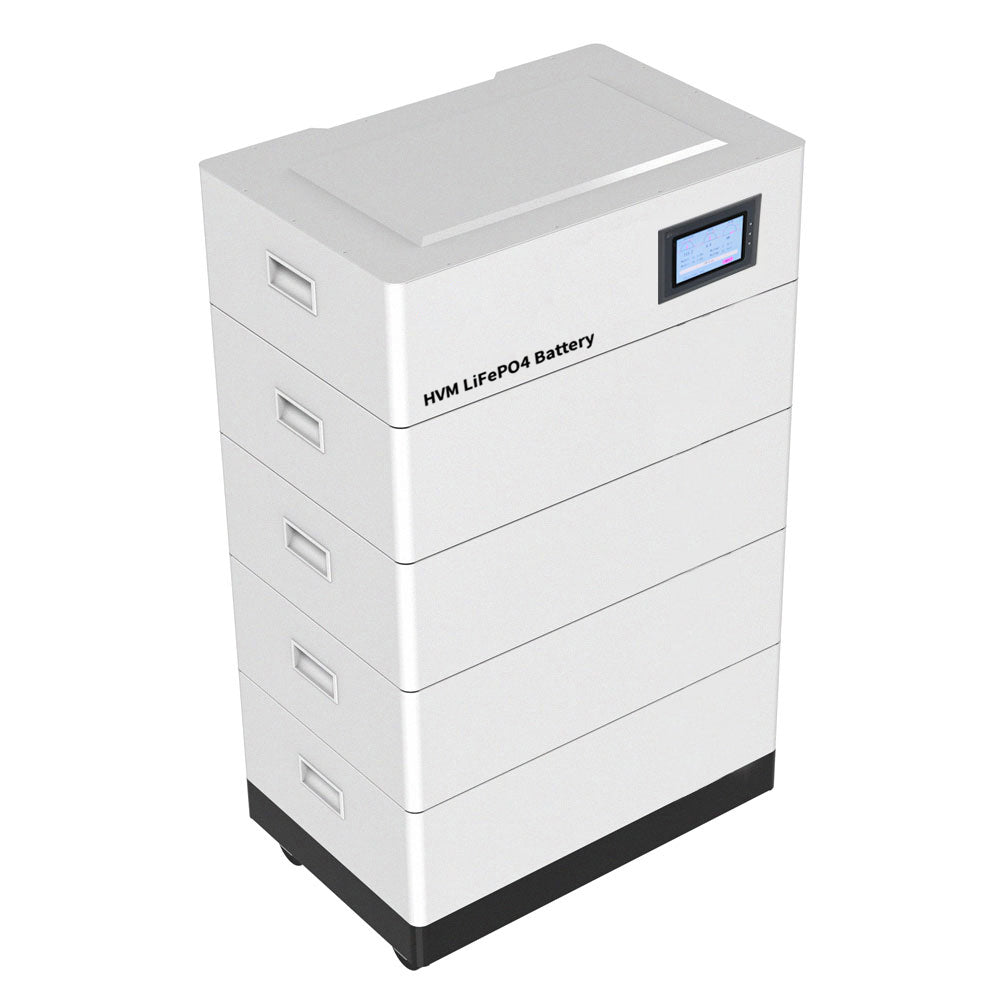

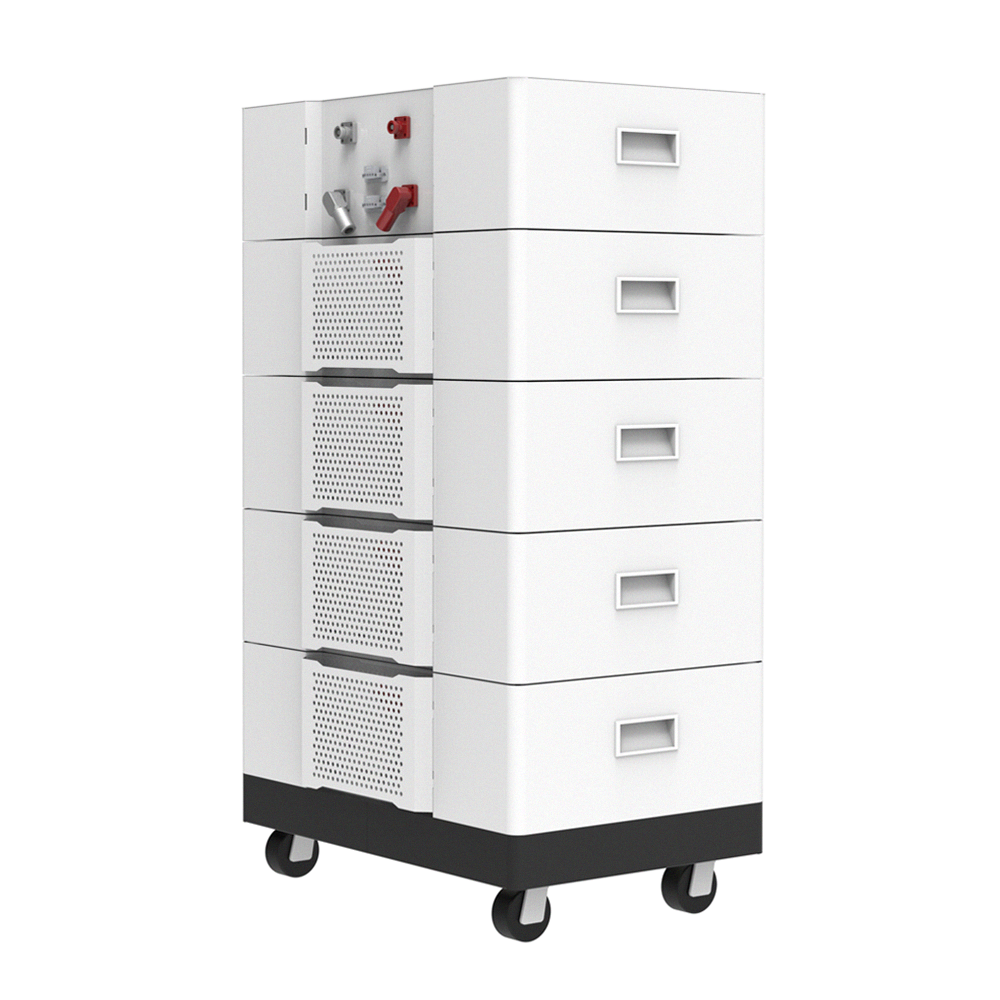

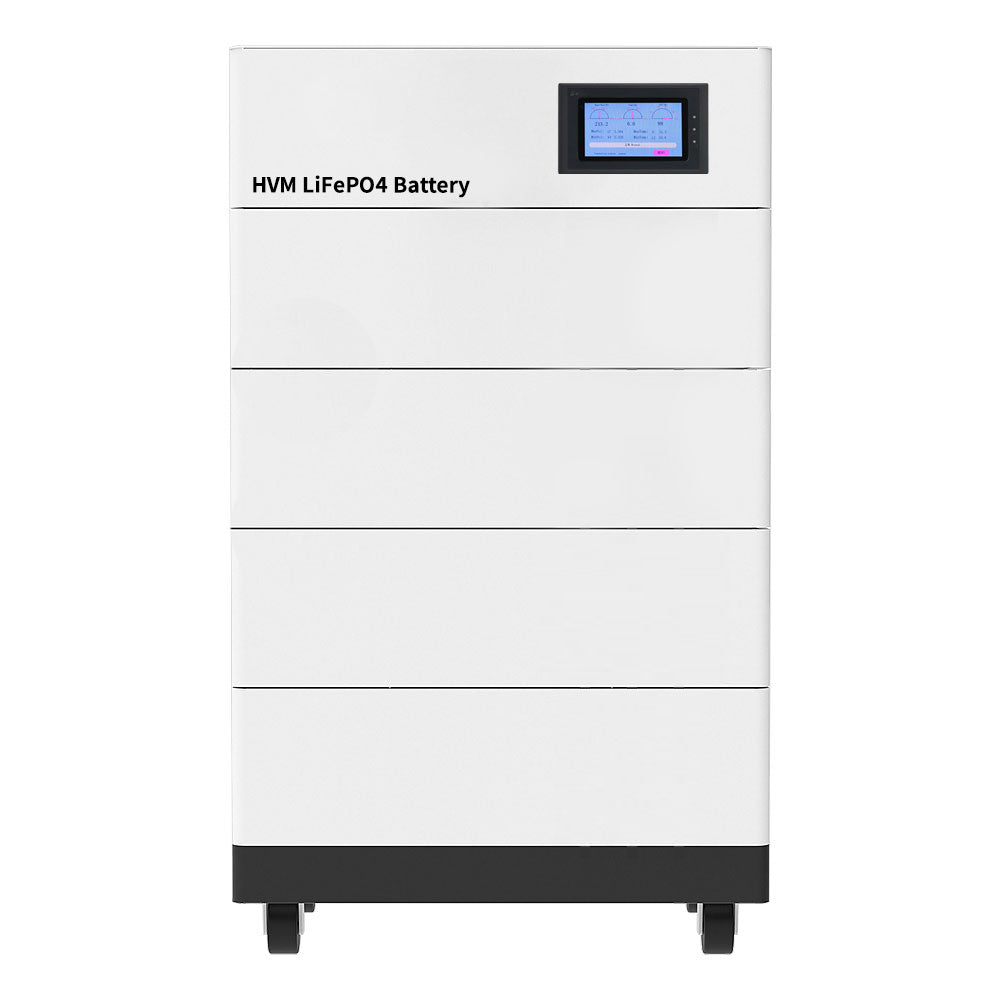

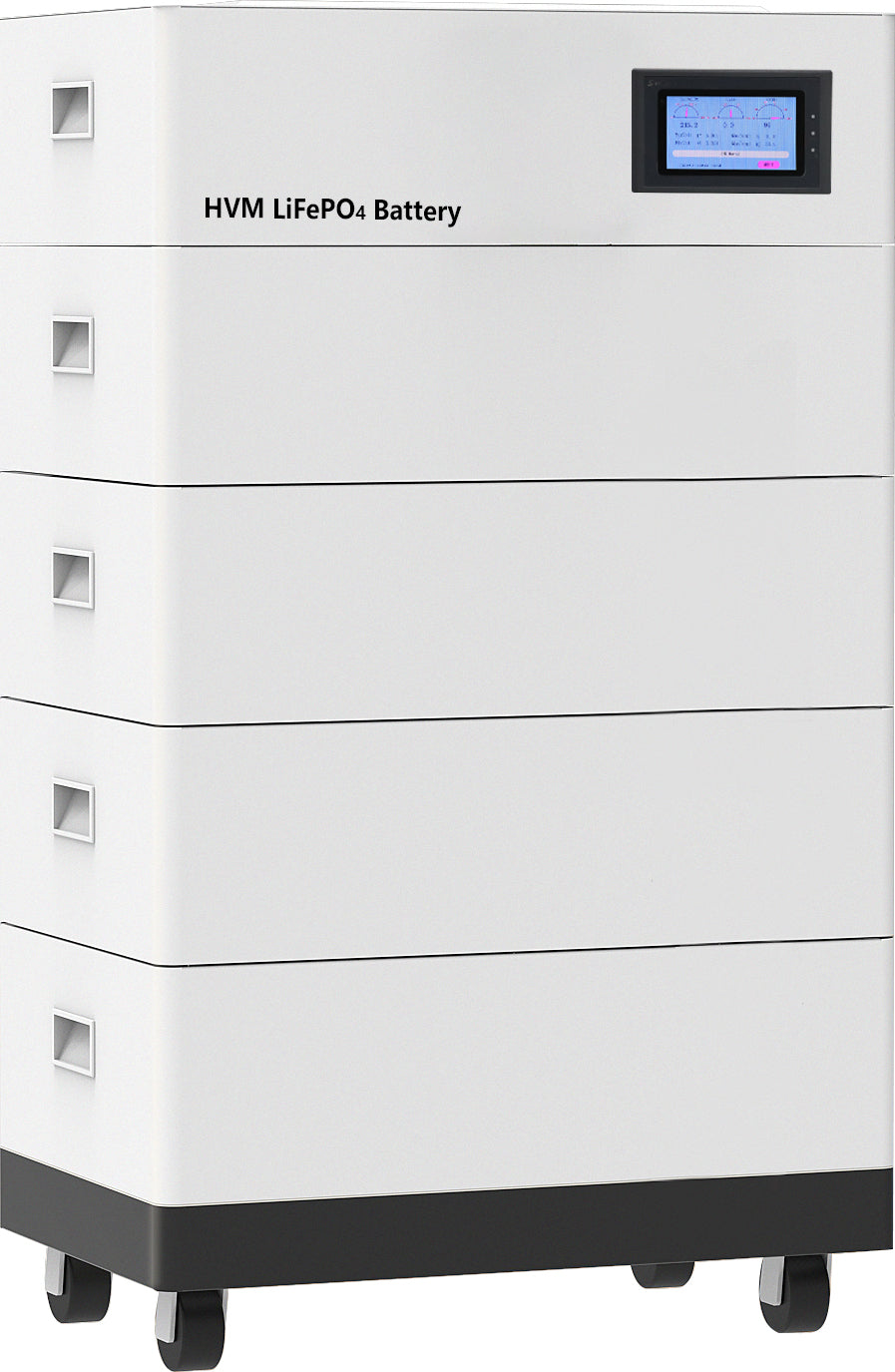

HIGH VOLTAGE LiFePO4 BATTERY
01 BATTERY FEATURES
1. Modular design, easy to expand the capacity, supports up to 8 battery packs in series, with optional energy of 9.6kwh~38.4kwh;
2. LCD display to monitor the operating status of the battery in real time;
3. Achieving the maximum efficiency through the high-voltage series connection, with high-power emergency backup and off-grid functions;
4. Patented modular plug design, no internal wiring required, highly flexible and easy to install;
5. Grade A lithium iron phosphate (LFP) battery cell with 6000 cycles, high safety and long service life;
6. Built-in BMS intelligent protection function, compatible with leading high-voltage inverters;
7. Universal wheel design at the bottom for easy movement and use
Product Description
Product Type |
HVM45S100BL |
HVM60S100BL |
HVM75S100BL |
HVM90S100BL |
HVM105S100BL |
HVM120S100BL |
Number of Modules |
3 |
4 |
5 |
6 |
7 |
8 |
Battery Capacity |
100Ah |
100Ah |
100Ah |
100Ah |
100Ah |
100Ah |
Battery Energy |
14.4KWh |
19.2KWh |
24KWh |
28.8KWh |
33.6KWh |
38.4KWh |
Size(L×W×H) mm |
570×380×833 |
570×380×1000 |
570×380×1167 |
570×380×1334 |
570×380×1501 |
570×380×1668 |
Weight |
148Kg |
189Kg |
230Kg |
271Kg |
312Kg |
353Kg |
Standard Charge Current |
20A |
20A |
20A |
20A |
20A |
20A |
Standard Discharge Current |
20A |
20A |
20A |
20A |
20A |
20A |
