01

BATTERY FEATURES

Original Class A high-reliability lithium iron phosphate battery, green and environmentally friendly

Intelligent integrated BMS, all-round protection strategy and fault detection

Supporting off-grid/hybrid output

Multiple charging and discharging modes are available

Play and plug design, easy to install

Up to two systems in parallel, with dual storage and output

Supporting for monitoring real-time data through the app

LCD display, dynamic display of system operating status data

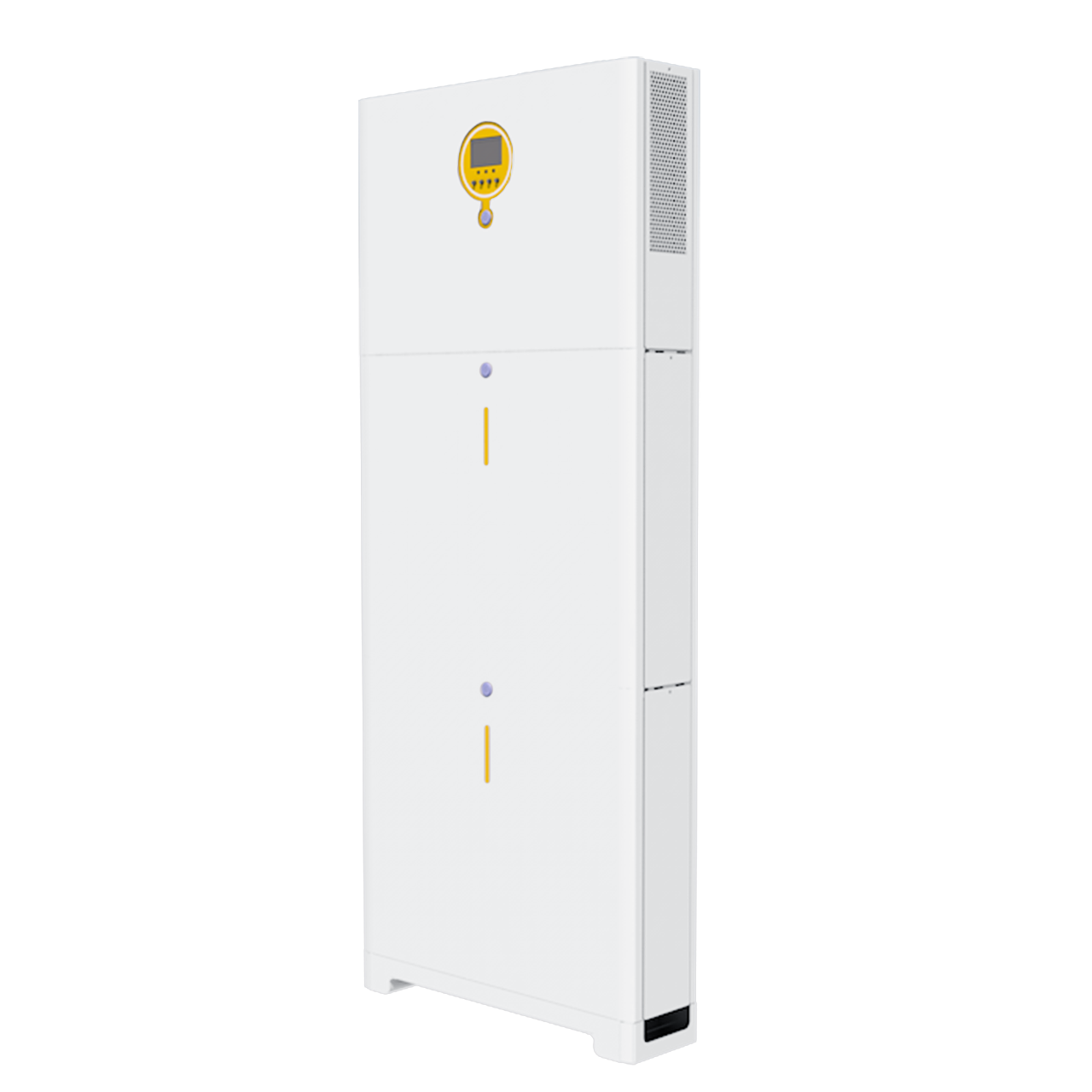

Product Description

Inverter module

INV05KLP1-V5.0

Output

Rated output power

5,000W

Maximum peak power

10,000VA

Motor load capacity

4HP

Wave form

PSW (Pure Sine Wave)

Rated output voltage

220V ac (Single Phase)

Maximum parallel capacity

2 units (Up to 10KW)

Output mode

Off-grid/Hybrid

Solar input

Types of solar charging

MPPT

Maximum solar array power

5,500W

Maximum solar open-circuit voltage

500Vdc

Grid/generator inputs

Input voltage range

90~280Vac

Bypass overload current

40A

Battery charging

Maximum solar charging current

100A

Maximum grid/generator charging current

60A

Routine

Dimensions (L×W×Hmm)

400×580×145

Weight (Kg)

~18

Battery module

PC-AIOV05B

Battery power

5.12KWh

Rated voltage

51.2V

Rated capacity

100Ah

Battery type

Prismatic cell

Cycle life

≥6000 (80%DOD, 0.5C, 25°C)

Maximum parallel capacity

4 units (Max. 20.48KWh)

Dimensions (L×W×Hmm)

480×580×145

Weight (Kg)

~45

Standard

UN38.3, MSDS,  IEC62619:2017,EN IEC61000-3-2,  EN IEC61000-6-1,RoHS
