01

BATTERY FEATURES

Original Class A high-reliability lithium iron phosphate battery, green and environmentally friendly

Intelligent integrated BMS, all-round protection strategy and fault detection

Supporting off-grid/hybrid output

Multiple charging and discharging modes are available

Play and plug design, easy to install

Up to two systems in parallel, with dual storage and output

Supporting for monitoring real-time data through the app

LCD display, dynamic display of system operating status data

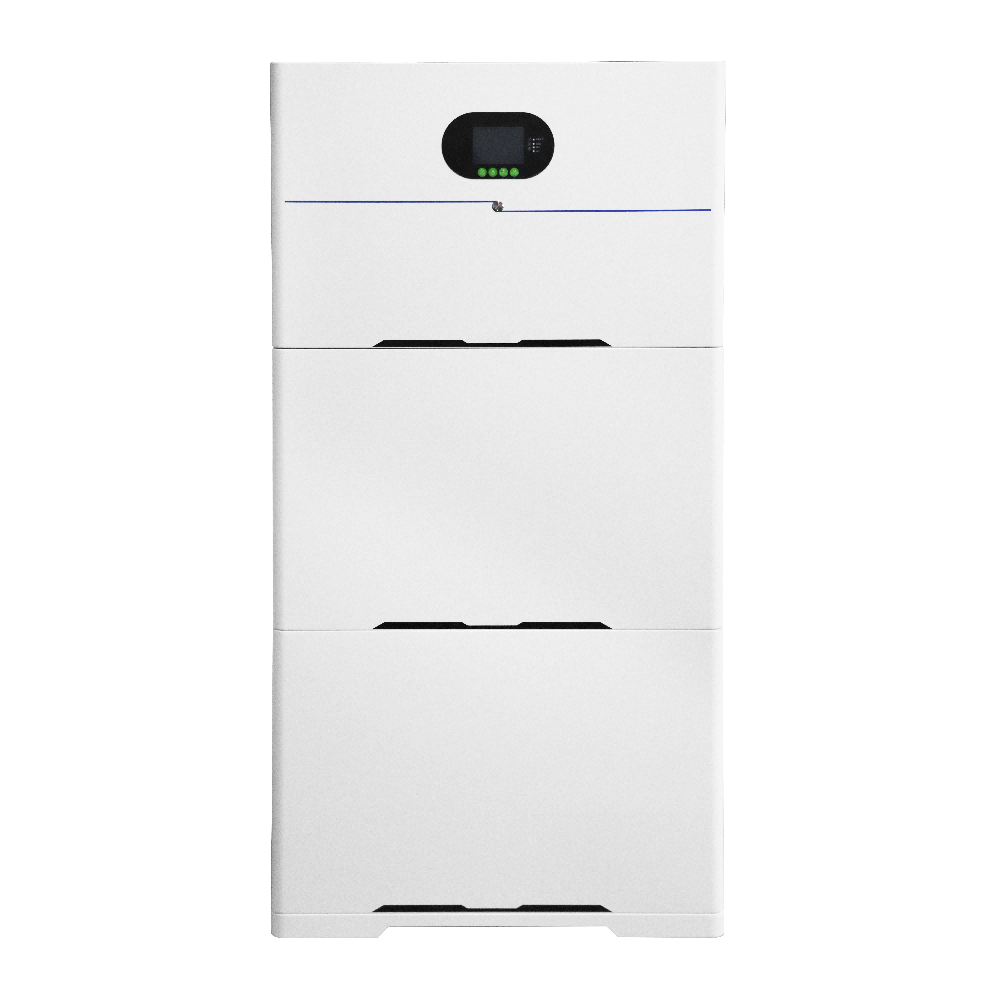

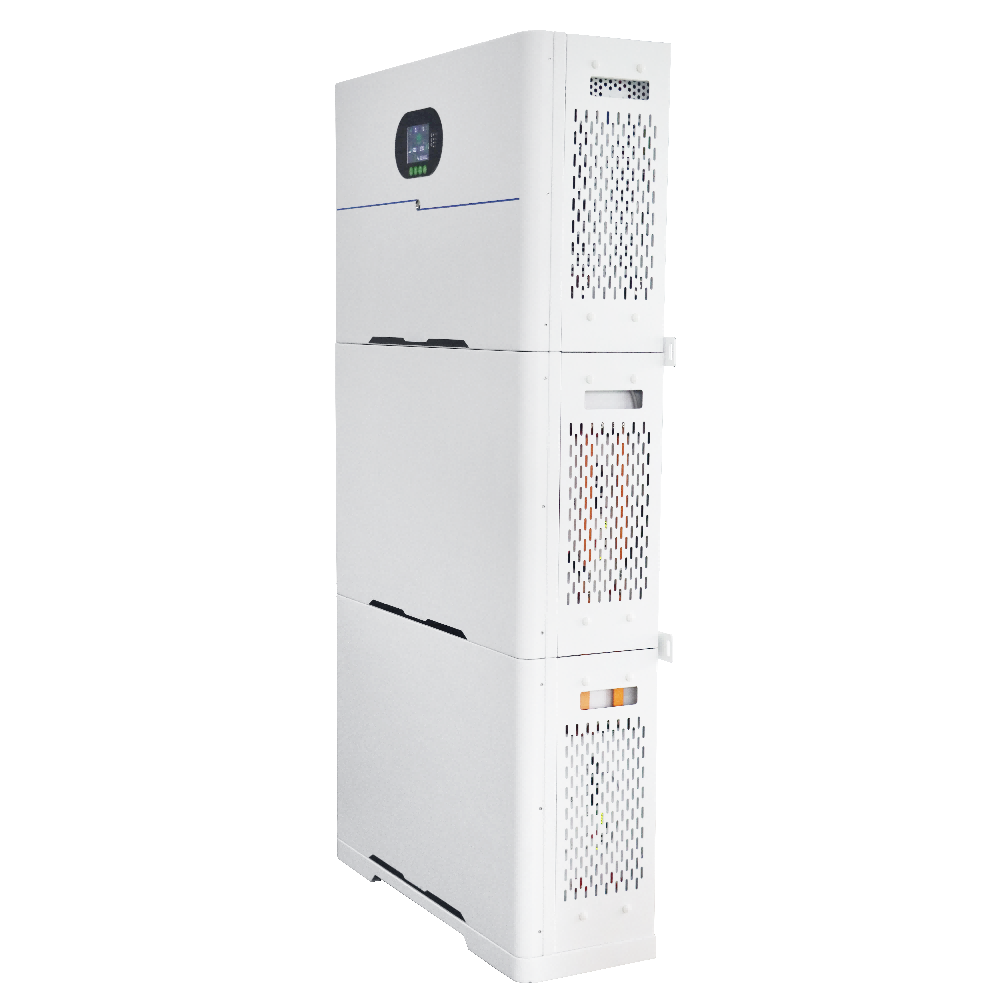

Product Description

Inverter module

INV10KLP1-V5.0

Output

Rated output power

10,000W

Maximum peak power

20,000VA

Motor load capacity

6HP

Wave form

PSW (Pure Sine Wave)

Rated output voltage

220V ac (Single Phase)

Maximum parallel capacity

2 units (Up to 20KW)

Output mode

Off-grid/Hybrid

Solar input

Types of solar charging

MPPT

Maximum solar array power

5,500W+5500W

Maximum solar open-circuit voltage

500Vdc+500Vdc

Grid/generator inputs

Input voltage range

90~280Vac

Bypass overload current

63A

Battery charging

Maximum solar charging current

200A

Maximum grid/generator charging current

120A

Routine

Dimensions (L×W×Hmm)

750×470×250

Weight (Kg)

~32

Battery module

PC-AIOV13B

Battery power

13.44KWh

Rated voltage

48V

Rated capacity

280Ah

Battery type

Prismatic cell

Cycle life

≥6000 (80%DOD, 0.5C, 25°C)

Maximum parallel capacity

4 units (Max. 53.76KWh)

Dimensions (L×W×Hmm)

750×470×250

Weight (Kg)

~105

Standard

UN38.3, MSDS,  IEC62619:2017,EN IEC61000-3-2,  EN IEC61000-6-1,RoHS
